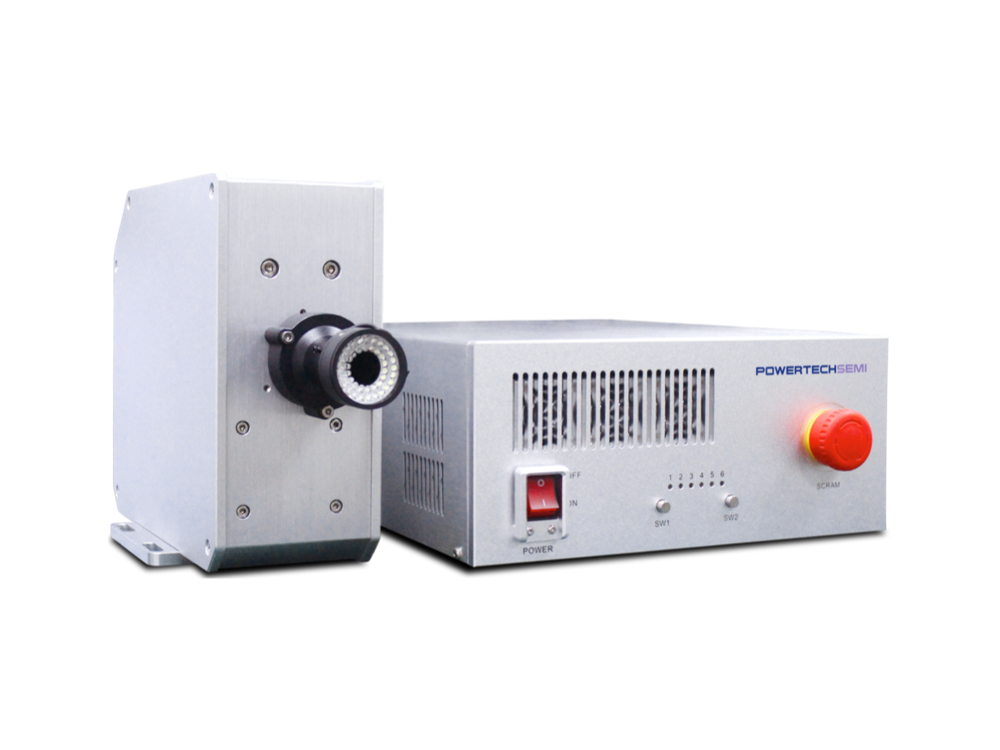

Video positioning and marking machine

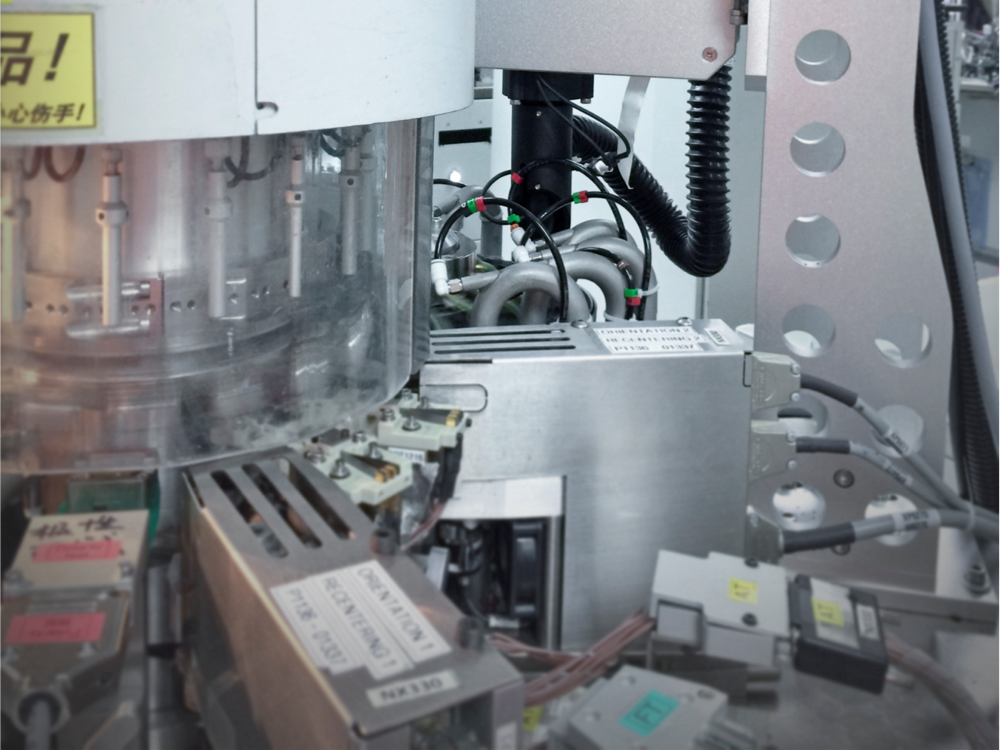

Vision high-precision single-piece marking or flash removal is mainly used with high-speed turret-type Handler. Using a high-speed galvanometer scanning system, the marking accuracy is high and the performance is stable, which greatly improves the product
|
Suspended power supply |
Multiple sites in parallel |
Multi-channel high precision |
Supports multiple extensions |
| Type | Video positioning and marking machine |
| Advantages |
The Vision non-contact visual inspection system is used to quickly determine the position coordinates of the device and simultaneously send the information to the laser marking system. Based on the coordinate information detected by Vision, the system adjusts the printing content to the corresponding position for engraving, which greatly improves the printing accuracy of the product. Vision and marking software/hardware are derived from PowerTECH; they have high compatibility and can be designed into embedded integrated or split structures according to customer requirements. |
| Main Features |
• UPH：50K • Laser system: Continuous/pulsed Fiber laser (optional) • Laser wavelength：1064±10nm • Power：5/10/20W • Output power：420W • Power supply: 220V AC 50-60Hz • Marking range: 50X50mm • Minimum line width：0.02mm • Minimum character height: 0.12mm • X, Y direction offset accuracy: 0.05mm • Angle offset accuracy：＜4° |
|
