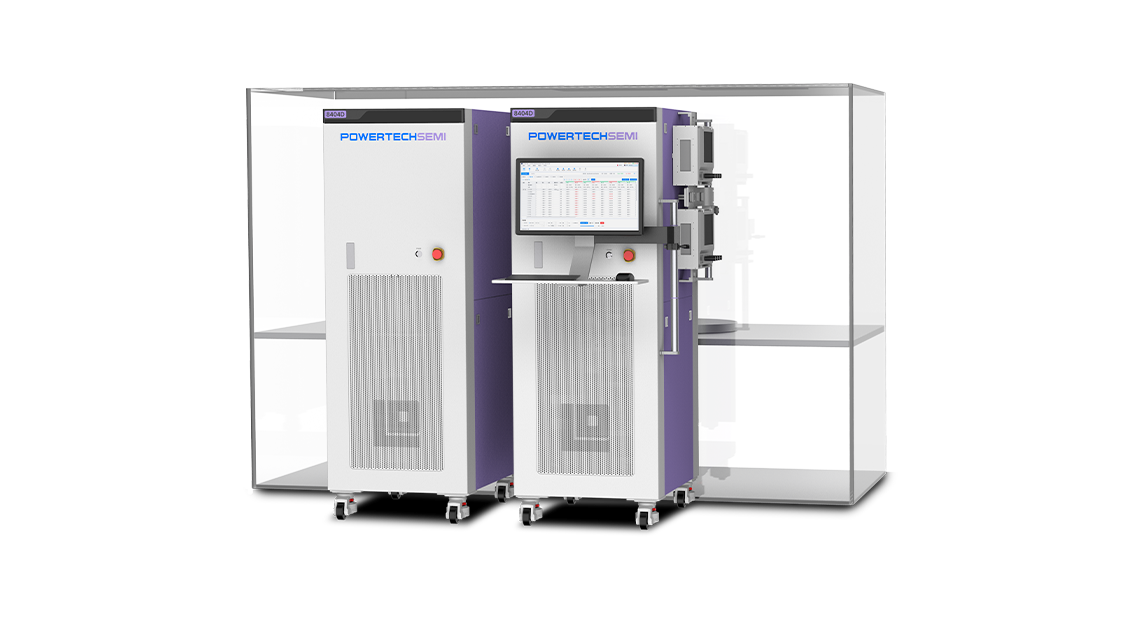

KGD (Know Good Die) testing solution

Supports high temperature and normal temperature testing: DC+SW+UIL+DC&RG; Support testing pin card protection scheme; Provide a complete set of testing + sorting solutions;

Pin card

protection

Two-DUT test in parallel

High temperature and

normal temperature

Data merge

Model	KGD testing solutions
Product Advantages	• Low spurious solutions; • Exclusive pin card protection patented technology; • Overload and undervoltage protection; • Test two wafers at a time; • Supports high temperature heating
