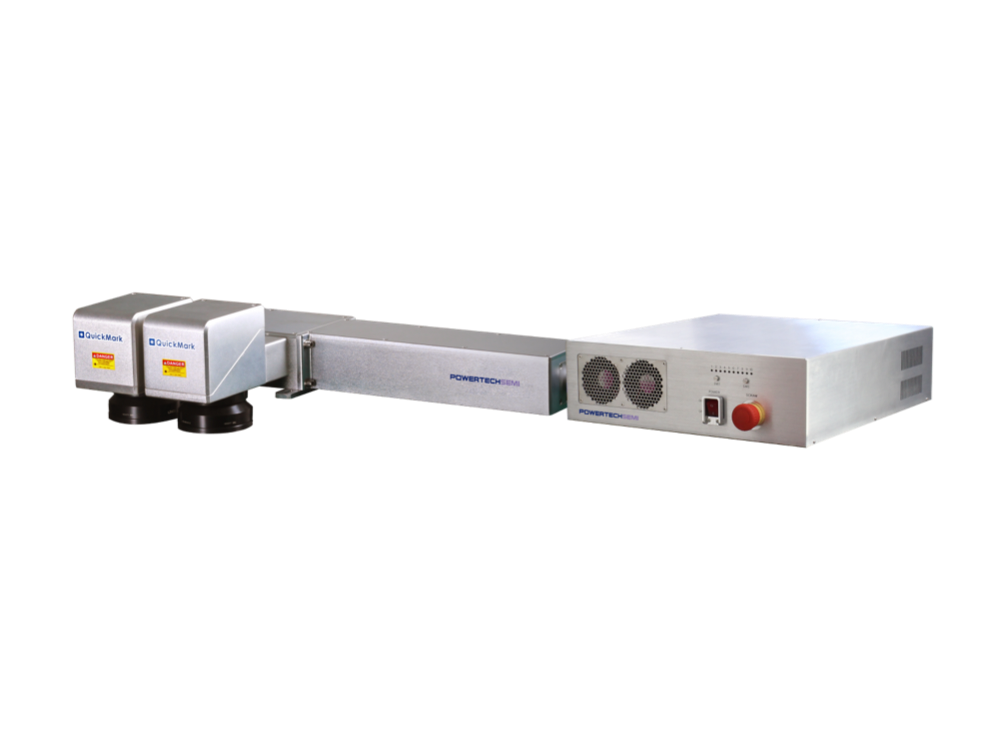

Pulse double-head laser marking machine
Using a high-speed galvanometer scanning system, the marking accuracy is high and the performance is stable, which greatly improves the production efficiency of product laser printing.
|
Suspended power supply |
Multiple sites in parallel |
Multi-channel high precision |
Supports multiple extensions |
| Type | Pulse double-head laser marking machine |
| Advantages |
Laser printing line width is automatically adjusted by the program It has strong adaptability and can be applied to various materials such as metals and non-metals. It has a large marking range and good consistency. The whole machine has fast printing speed and is mainly used for laser printing of whole-chip IC devices. The accuracy of the correction array can be adjusted individually or as a whole to control the marking accuracy of the IC strips. Adopting air cooling method, it can operate without maintenance for a long time, has good stability and long service life. |
| Main Features |
• Laser center wavelength：1064nm • Laser output power：20/30W • Marking range：300x160mm • Minimum printing line width: 0.05 (optional program automatically adjusts line width) • Minimum font height：0.5mm • Marking frequency：20-200KHZ • Input power：220V±10%/50HZ • Adapt to packaged devices: various IC integrated devices |
|
