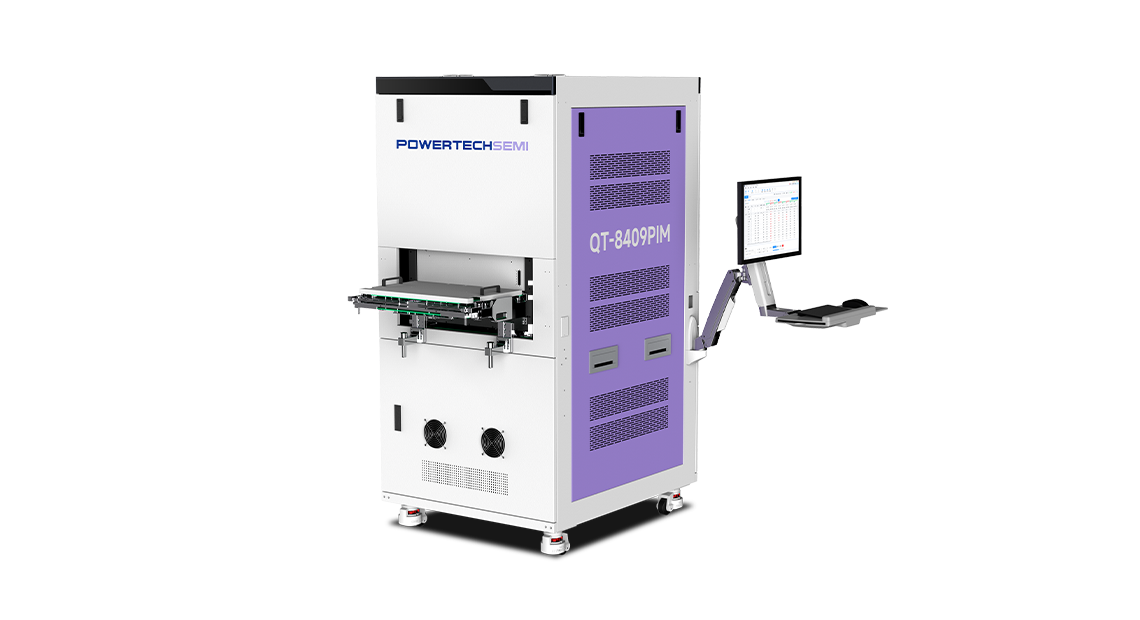

QT-8409PIM high-power dynamic and static comprehensive test system
QT-8409PIM power module dynamic and static test system Applied to IGBT/SIC power module DC/AC dynamic and static parameter test, support high temperature/normal temperature, mass production/manual test, automatic/semi-automatic application scenarios
|
High-speed short-circuit protection |
Low stray |
Flexible tooling |
Suitable for mass production/manual test |
|
Type |
QT-8409PIM |
| Advantages |
Industry leading short circuit protection speed, effective protection of Socket, low stray solution Quickly change different tooling |
| Main Features |
• Support 4 stations • ISC 12KA LS<30nH • AC：SW、 TRR 、ISC、QG、RBSOA test • AC@3000A 1500V • DC@2000A 2KV /3KV/6KV/8KV • Protect Clamp<2us • Test object：PIM IGBT module, SiC module, DBC, three level products, etc |
|
